/digital/combo/8

from $140.00
Sold Out - Join Our Email List to Find Out When They’re Back In Stock!

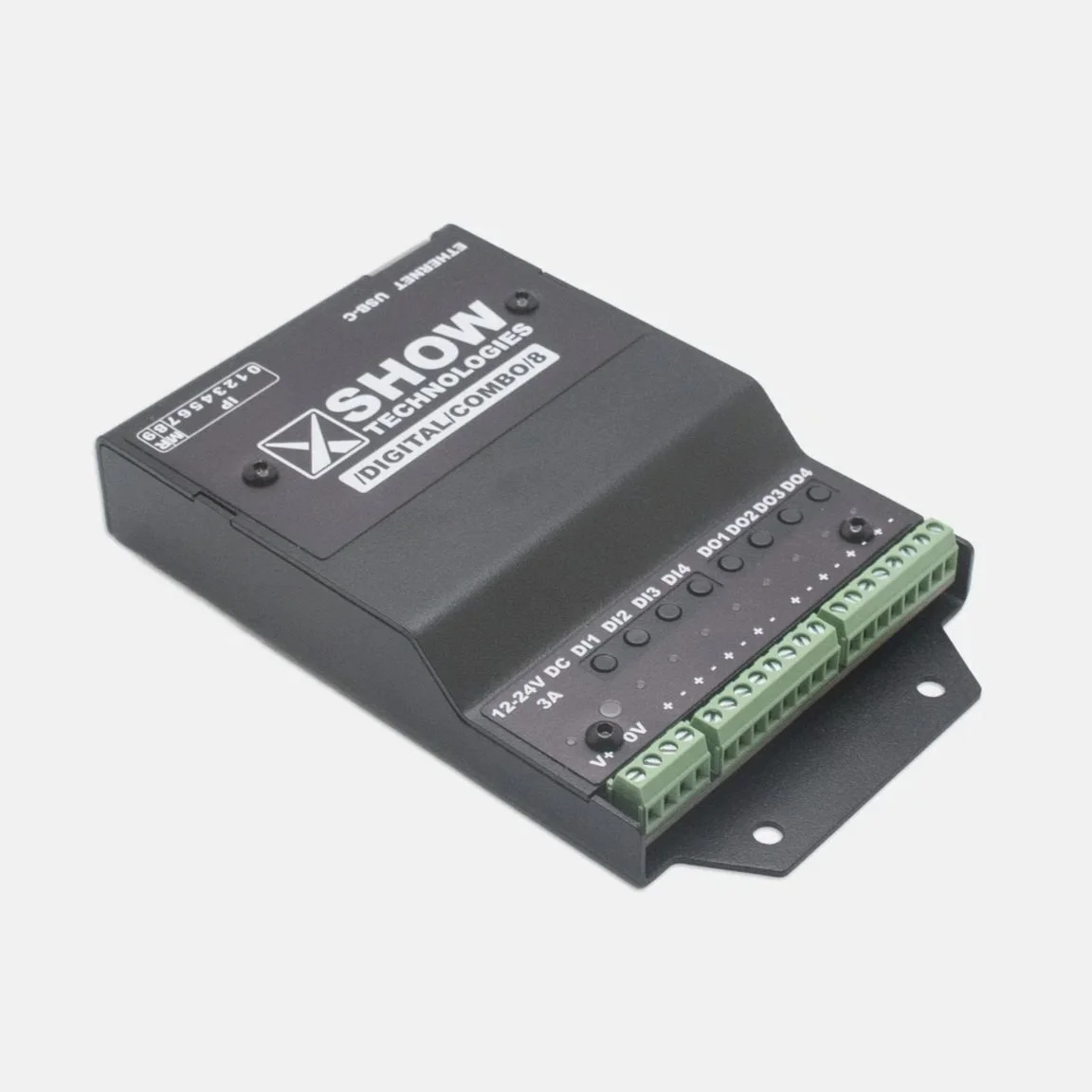

Ethernet-based show control node with 4 12-24VDC digital inputs and 4 12-24VDC digital outputs. Connect buttons, switches, solenoids, relays, sensors, valves, and many more to your show control system using OSC over Ethernet or USB.

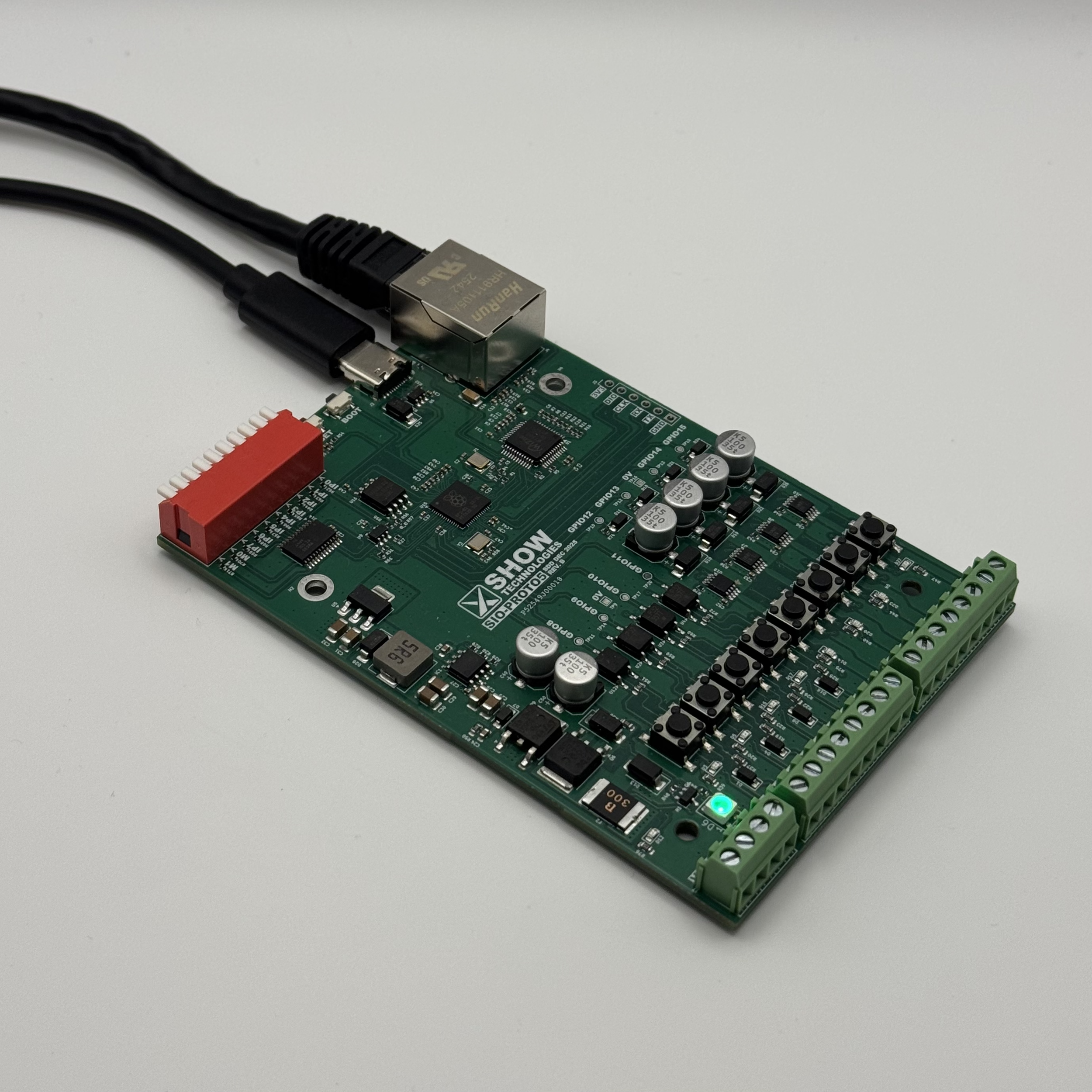

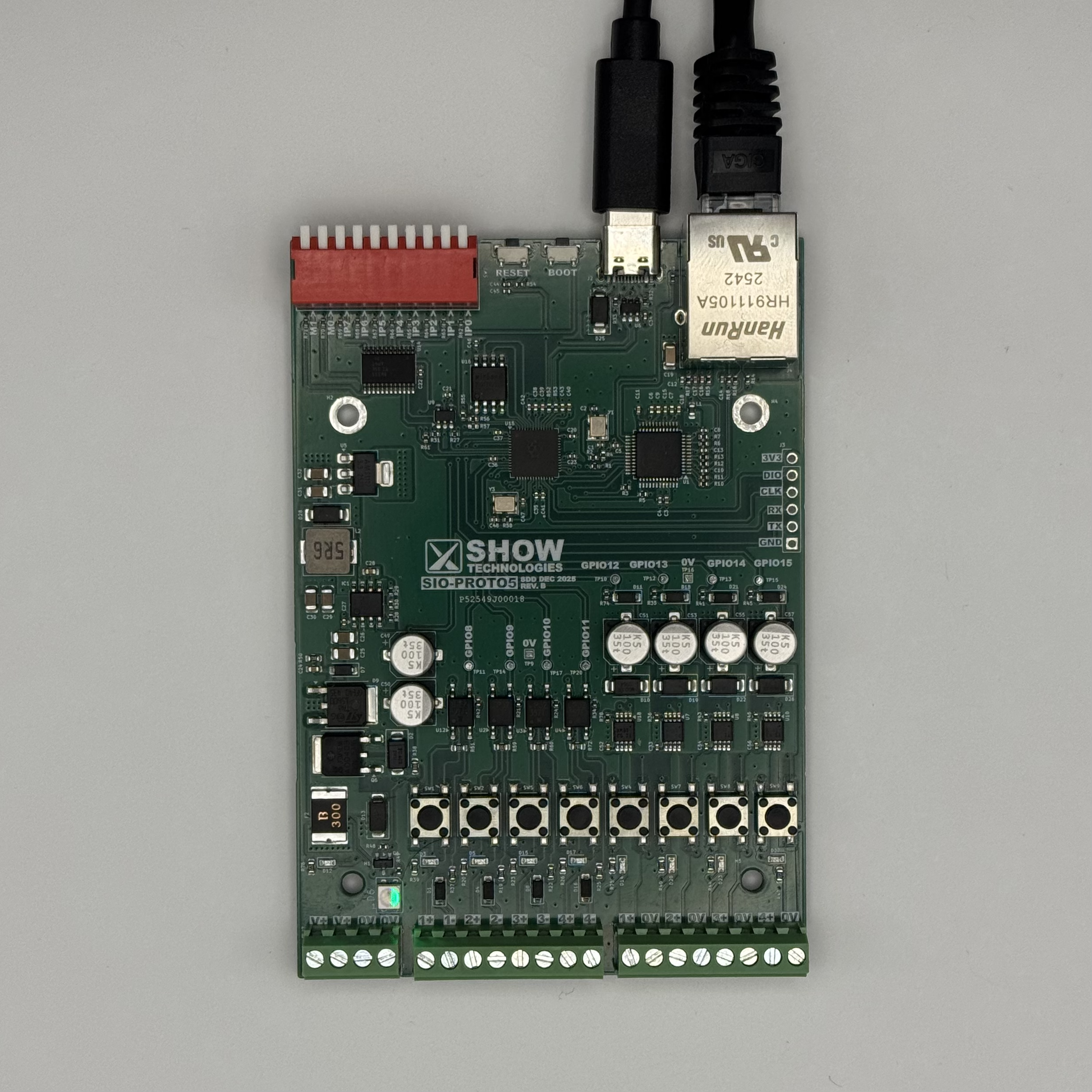

NOTE: ShowIO Digital Combo 8 - Early Adopter Edition is currently available for purchase as a standalone PCB, without an enclosure. These products are intended for users that are excited about ShowIO and want to get a head start on integrating. Contact us directly to purchase yours.

We’re excited to support any early adopter projects and get feedback on how integrators are using ShowIO. Purchasers of the Early Adopter Edition will receive priority customer support during the early adopter phase, and a 15% discount code that can be applied to one product on a future order (limit one per customer).

Model:

Ethernet-based show control node with 4 12-24VDC digital inputs and 4 12-24VDC digital outputs. Connect buttons, switches, solenoids, relays, sensors, valves, and many more to your show control system using OSC over Ethernet or USB.

NOTE: ShowIO Digital Combo 8 - Early Adopter Edition is currently available for purchase as a standalone PCB, without an enclosure. These products are intended for users that are excited about ShowIO and want to get a head start on integrating. Contact us directly to purchase yours.

We’re excited to support any early adopter projects and get feedback on how integrators are using ShowIO. Purchasers of the Early Adopter Edition will receive priority customer support during the early adopter phase, and a 15% discount code that can be applied to one product on a future order (limit one per customer).

Technical Specifications

Power Supply

  • 12-24 volt DC input
  • Resettable fuse sized for 3A continuous draw
  • Overcurrent, overvoltage, reverse voltage, and ESD protection

I/O Channels

  • (4) 12-24VDC digital inputs - isolated, 2-wire connection
  • (4) 12-24VDC digital outputs - 2A per-channel current limit
  • Rugged circuit protection on every channel
  • Easily test channels with onboard pushbuttons and indicator lights

Connectivity

  • OSC communication for easy connection to most show control systems
  • 10/100 Ethernet port
  • DIP switches for quick configuration of LAN settings
  • Supports static IP addressing and DHCP
  • USB serial port

Software

  • Regular firmware updates with bug fixes and new features
  • Implements ShowIO API

RESOURCES

  • Documentation + User Manual: Link

  • OSC Command API: Link

  • Datasheet: PDF

  • Firmware Download: Link
